EnaBolt 2A

Description

The EnaBolt 2A is a non-spin high security container seal. Constructed of stainless steel encapsulated in ABS plastic, the EnaBolt 2A has high strength while providing flexibility to accommodate a high range of digital printing options such as barcoding and serial numbers. The plastic coated pin has the ability to be printed on, allowing for matching serial numbers to be engraved.

For convenience, the EnaBolt 2A's pin and barrel are attached together so they won't be separated and lost before application.

Applications

  • Cargo containers
  • Trailer vehicle doors
  • Rail freight

Key Features

  • ISO/PAS 17712:2010 compliant, testing performed by Dayton T. Brown
  • Bolts and inserts are made of steel
  • Entire plastic enclosure for the barrel is made of high quality ABS material
  • Laser printed with serial numbers on both pin and barrel - barcoding possible on barrel

Specifications

  • 18mm diameter metal perch
  • Tensile strength of 20kN
  • Shear strength of 8.9kN
  • Bending strength of 67Nm
  pin length locking distance locking diameter barrel diameter pin diameter
EnaBolt 2A 84.5mm 44mm 11mm 23mm 8mm

Images

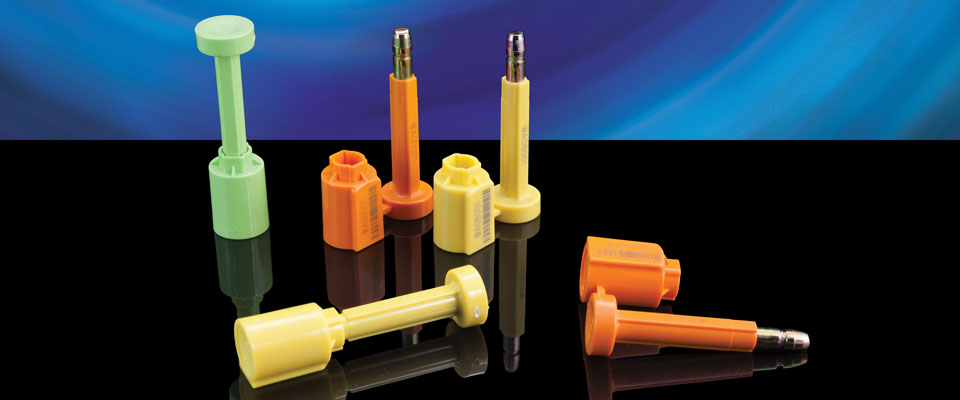

The EnaBolt 2A is a non-spin container seal.
The EnaBolt 2A is a non-spin container seal.
By introducing a matching key to the pin and barrel, this prevents the use of high speed spinning techniques to defeat the locking mechanism.
By introducing a matching key to the pin and barrel, this prevents the use of high speed spinning techniques to defeat the locking mechanism.

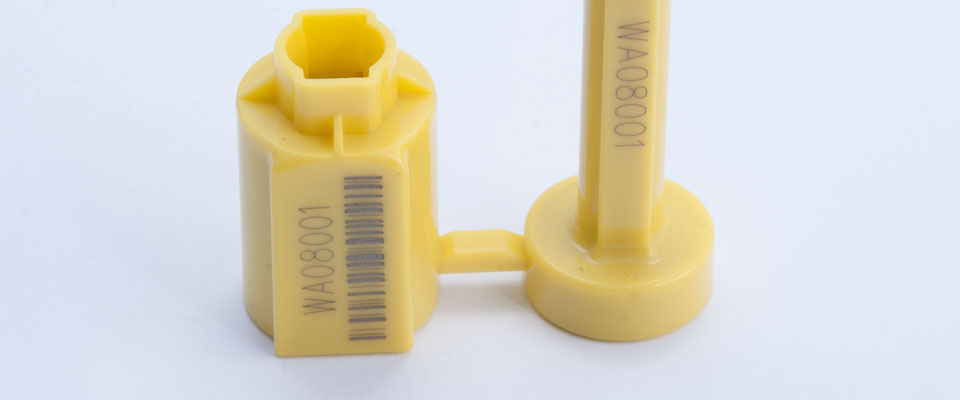

Both the barrel and pin are laser marked to ensure security to prevent the pin from being substituted. To  reduce the likelihood of losing the matching pin and barrerl, they are attached with a bridge that can be snapped off cleanly and easily.
Both the barrel and pin are laser marked to ensure security to prevent the pin from being substituted. To reduce the likelihood of losing the matching pin and barrerl, they are attached with a bridge that can be snapped off cleanly and easily.
