HanaLock

Description

HanaLock is an ISO 17712:2010 & C-TPAT compliant high security bolt seal. The barrel is made of high quality ABS material to withstand impact and reveal evidence of tampering. It also features a Ø18mm insert and pin head to keep the seal engaged on the container latch even when the ABS plastic cover is intentionally or accidentally removed.

Applications

  • Shipping containers bound for US
  • Trucks
  • Rail freight

Key Features

  • Seals are ISO/DIS 17712 & C-TPAT compliant
  • 18mm diameter insert mechanism & pin head is larger than ISO Container latch hole so that the seal will remain in place even if the plastic coating on the seal has been removed or knocked off
  • Comes in matched pairs (coated pin option)
  • Limited to 130 degree rotation when engaged to defeat high-speed rotation tampering techniques (for optional coated pin)

Specifications

  • Can withstand a pull load of minimum 1,000kg-f
  • Suitable for temperatures ranging from -40°C to 120°C
  code Locking distance Locking dia. Barrel dia. Pin dia.
HanaLock Uncoated pin HL 54.0mm 20mm 22.8mm 8mm
HanaLock Coated pin HL 45.9mm 20mm 22.8mm 12.6mm

Images

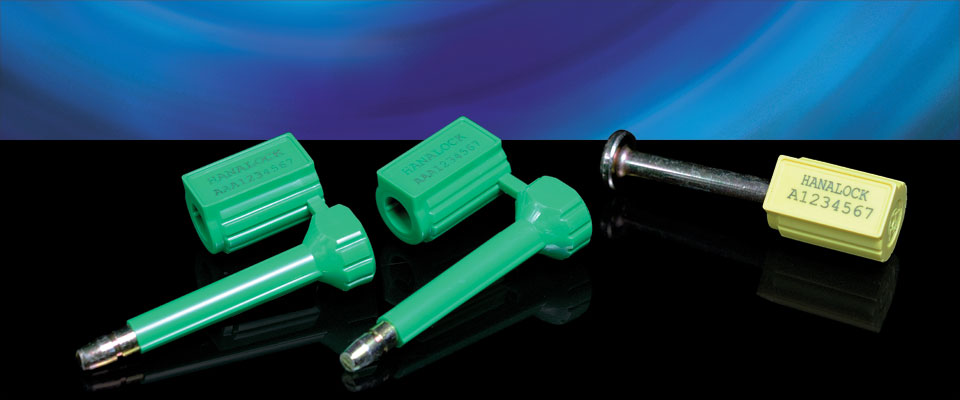

Based on EinLock technology, the HanaLock is an ultra-high security bolt seal with the ability to have anti-spin features in coated pin form.
Based on EinLock technology, the HanaLock is an ultra-high security bolt seal with the ability to have anti-spin features in coated pin form.

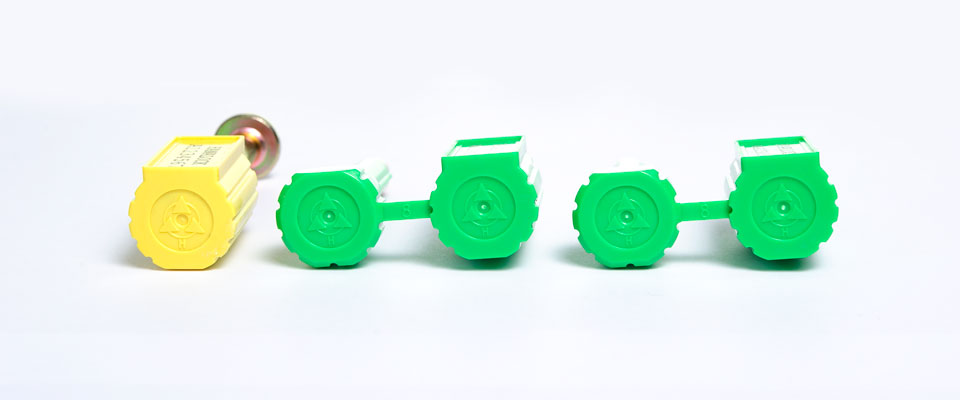

In coated pin form, the HanaLock is able to come in matched pairs for convenience.
In coated pin form, the HanaLock is able to come in matched pairs for convenience.

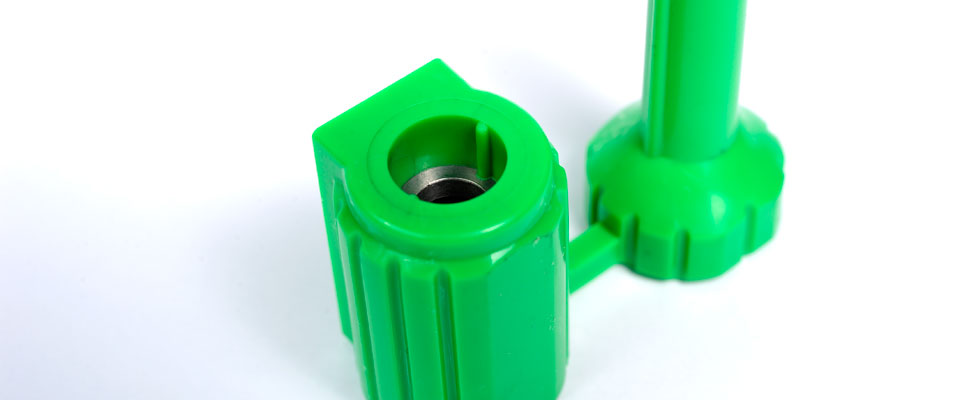

Notched in Coated pin configuration to limit rotation to 130 degrees, to defeat high-speed rotation tampering techniques.
Notched in Coated pin configuration to limit rotation to 130 degrees, to defeat high-speed rotation tampering techniques.

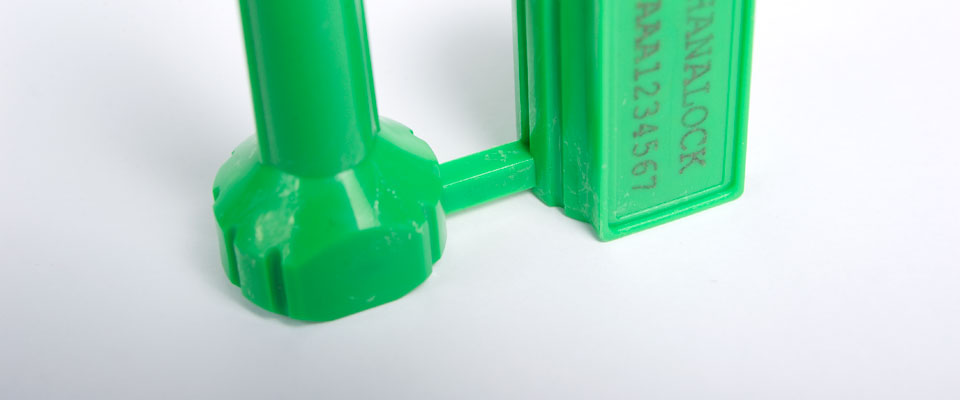

Flat sides on both barrel and pin (in coated pin form) keep the parts from rolling away, facilitating reading when logging.
Flat sides on both barrel and pin (in coated pin form) keep the parts from rolling away, facilitating reading when logging.
