CableSeal

Description

The CableSeal's simplicity of use belies its high security nature. It is a versatile barrier seal with the ease-of-use of a pull-tight seal. The tamper evident braided aircraft cable is available in various diameters to suit a variety of locking holes and breaking strength requirements, and will splay upon cutting to prevent rejoining.

Applications

  • Shipping containers
  • Trucks
  • Rail freight
  • Utility meters & valves
  • Plastic distribution boxes
  • Valves in petrochemical industry
  • Recycled water taps

Key Features

  • Cables are non-preformed galvanised steel aircraft cable and will splay upon cutting thereby preventing rejoining
  • Body is made from corrosive resistant aluminium alloy
  • CableSeal 3.5 and CableSeal 5.0 are CT-PAT compliant and are ISO/PAS 17712:2010 "H" certified
  • Efficiently designed body increases the surface area for larger, easier-to-read printing
  • Locking mechanism is made of zinc extrusion

Specifications

  • Seals are anodized and then laser engraved with name and sequential serial numbers for security
  • Standard cable length is 300mm, different cable lengths available on special request
  • Breaking strengths vary depending on wire diameter - refer to the table below for specifications.
  product code wire length wire diameter breaking strength locking head dimensions
CableSeal 1.5 CS15BS 300mm 1.5mm 250kgf 25mm x 20mm x 6.3mm
CableSeal 2.5 CS25BS 300mm 2.5mm 450kgf 25mm x 20.5mm x 6.3mm
CableSeal 3.5 CS35BS 300mm 3.5mm > 1000kgf 25mm x 27.6mm x 8mm
CableSeal 5.0 CS50BS 300mm 5.0mm > 1000kgf 28mm x 37mm x 9mm

Images

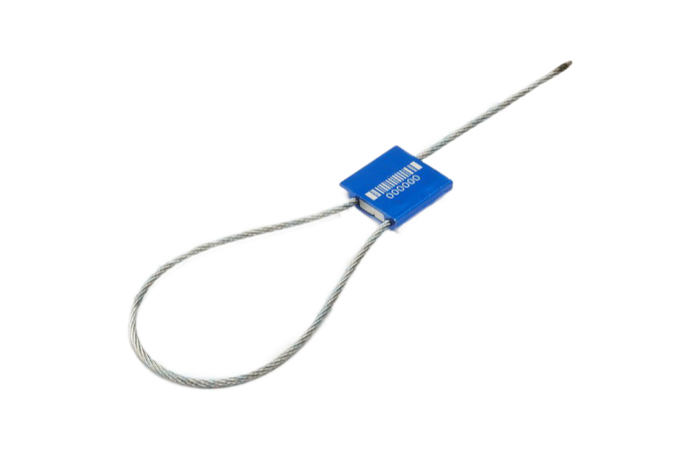

No tools are required to apply the CableSeal. No crimping tools - just insert the wire through the locking hole and pull through to desired length. A smooth pulling action makes it user-friendly and easy to secure.
No tools are required to apply the CableSeal. No crimping tools - just insert the wire through the locking hole and pull through to desired length. A smooth pulling action makes it user-friendly and easy to secure.

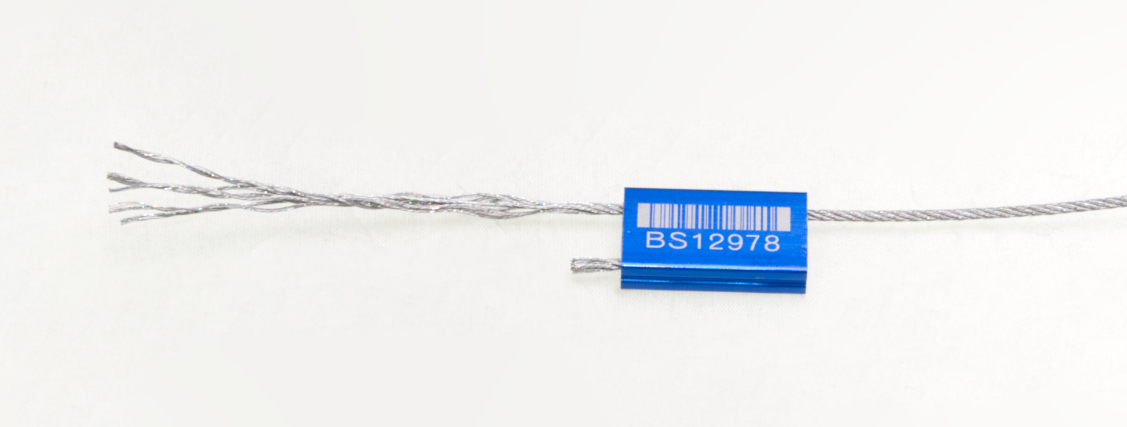

Upon cutting the cable the galvanised steel aircraft cable will splay and prevent rejoining. Cable cutters are required to cut the cable.
Upon cutting the cable the galvanised steel aircraft cable will splay and prevent rejoining. Cable cutters are required to cut the cable.

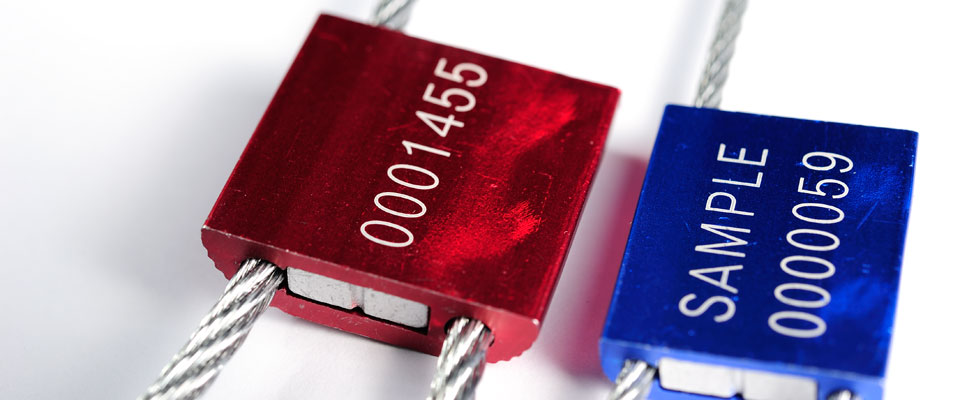

The CableSeal is anodised with a thick coating and then laser engraved for high contrast and easy-to-read printing.
The CableSeal is anodised with a thick coating and then laser engraved for high contrast and easy-to-read printing.
