CableSeal Hybrid

A economical mix of a plastic body and machined steel cam, the CableSeal Hybrid provides a value for money option for cable seals.

The flat plastic surface of the CableSeal Hybrid is versatile enough to print logos, serial numbers, or barcoding.

This product is currently end-of-line or discontinued. We recommend CableSeal Mini 2 as an alternative.

Description

The CableSeal Hybrid is an amalgamation of high strength plastic body and hardened machining steel cam. The plastic body, although making the seal economical, doesn't compromise on marking options, being able to be marked by laser engraving. The jamming cam, made of machining steel that's been hardened to 45 HRC, ensures a high breaking strength.

Applications

High security cabinets
Airline cargo carts
Utility meters & valves
Freight containers
Inland transportation

Key Features

High strength ABS plastic body
Cables are non-preformed steel and will splay upon cutting thereby preventing rejoining
ISO/PAS 17712 Certified

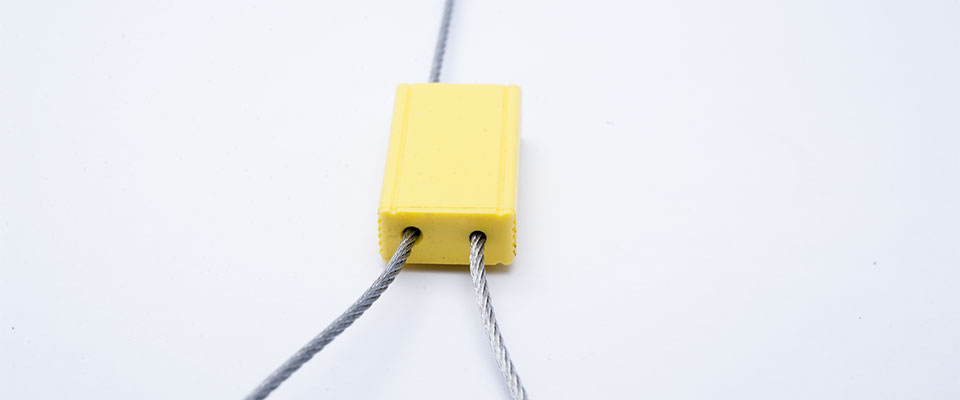

Easy to pull-through locking mechanism

Specifications

Seals are laser engraved with name and sequential serial numbers for security
Standard cable length is 300mm, different cable lengths available on special request

	product code	wire length	wire diameter	breaking strength	locking head dimensions
CableSeal Hybrid 1.5	CSH15BS	300mm	1.5mm	270kgf	15.8mm x 29.4mm x 7.5mm
