Description

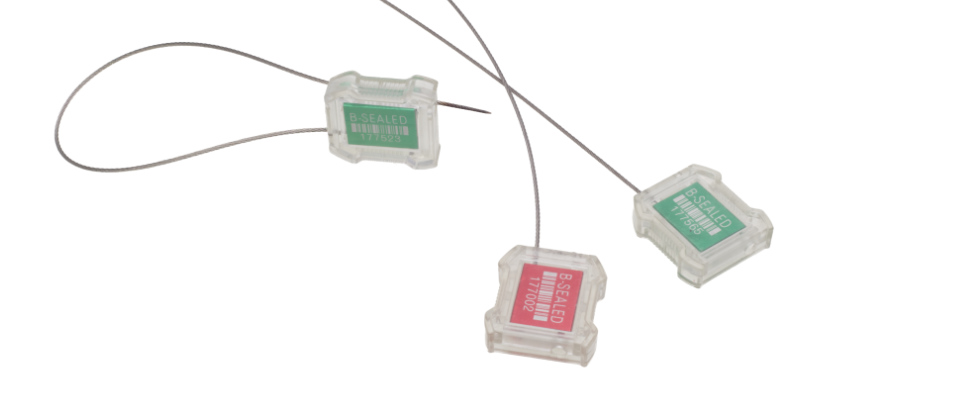

The CableSeal EX brings the simplicity of the CableSeal, but strengthening the integrity of the seal with an additional encapsulation to protect the information on cableseal body. The wires are also made from stainless steel also increases corrosion resistance.

Applications

  • Shipping containers
  • Trucks
  • Rail freight
  • Utility meters & valves
  • Plastic distribution boxes
  • Valves in petrochemical industry
  • Recycled water taps
  • Car seal

Key Features

  • Cables are made from stainless steel cable and will splay upon cutting thereby preventing rejoining.
  • Body is made from corrosive resistant aluminium alloy.
  • Plastic transparent cover for increase tamper evidence.
  • Offer higher corrosion resistance over standard CableSeals.
  • CableSeal 3.5 and CableSeal 5.0 are C-TPAT compliant and are ISO/PAS 17712:2013 "H" certified
  • Requires cable cutters to remove seals.

Specifications

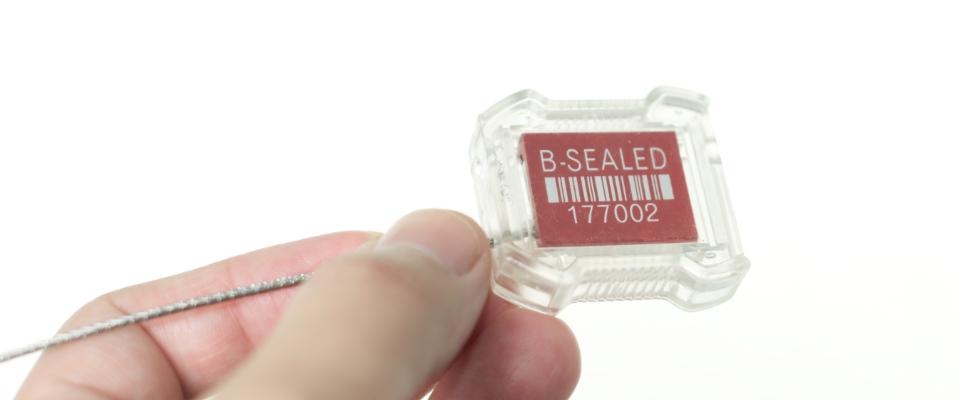

  • Seals are anodized and then laser engraved with name, serial numbers and barcode for security
  • Standard cable length is 300mm, different cable lengths available on special request
  • Braided galvanised steel aircraft cable available on request.

Customisations

  • Various colour
  • Various cable lengths
  • Various cable type
  • Logo and other markings
  • Serial numbers
  • Barcodes & QR codes

Minimum order quantity may be required.

Share

bsealed.co/cablesealex
instagram.com/bsealedau
bsealed.co/youtube

  product code wire length wire diameter breaking strength locking head dimensions shop link
CableSeal EX 1.5 CS15EX300 300mm 1.5mm > 250kgf 25mm x 25mm x 7.5mm
CableSeal EX 3.5 CS35EX300 300mm 3.5mm > 1,000kgf 25mm x 25mm x 7.5mm
CableSeal EX 5.0 CS50EX300 300mm 5.0mm > 1,000kgf 35mm x 35mm x 8.5mm
Need help with choosing which type of seal? Chat with us or check out our comparison table: Compare now
