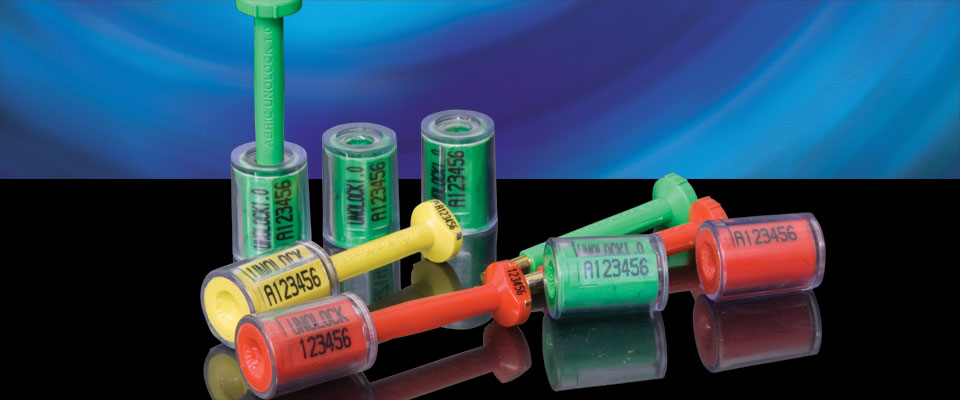

UnoLock 1

One of our highest security seals - the UnoLock is rich with tamper evidence and user-friendly features.

The seal is applied like any other bolt seal - extremely straight forward. Push together until it clicks positively.

This product is currently end-of-line or discontinued. We recommend UnoLock 3 or EnaBolt 7 as an alternative.

Description

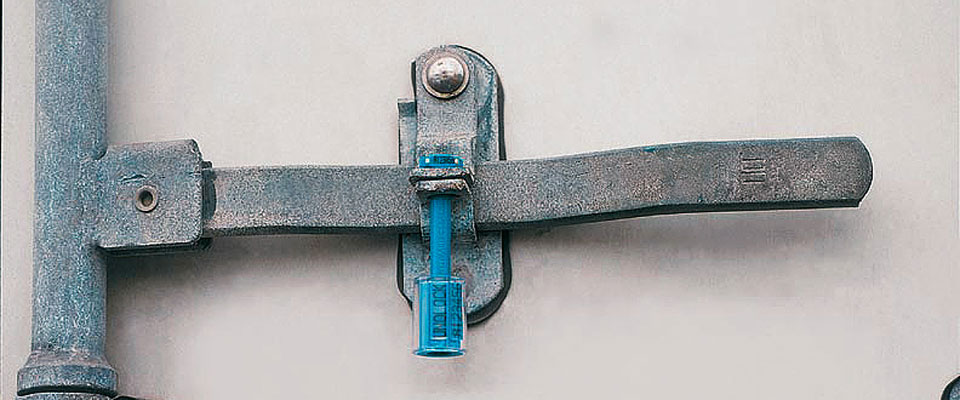

The UnoLock 1 is the ideal seal for sealing shipping containers. With a pull load of 1,000kg, matching seal and pin numbers and tamper evident pin coating, the UnoLock is a very high security barrier seal.

A specialised viewing window on the barrel magnifies the seal markings for easier reading.

Applications

Shipping containers
Trucks
Rail freight

Key Features

Total seal number encapsulation with non-rotatable pin insertion
Matching seal number on pin and barrel for tighter security control
Entire plastic enclosure for the barrel and pin is made of hard durable SAN plastic to reveal evidence of any attempts at tampering
Hardened steel locking mechanism is enclosed in a heavy-duty plastic barrel
All material components are zinc coated to protect against environmental attack

Specifications

Can withstand a pull load of minimum 1,000kg
Suitable for temperatures ranging from -40°C to 110°C

	barrier diameter	locking distance	locking diameter	pin diameter
UnoLock 1	25mm	48mm	9mm to 19mm	6.0mm
