Description

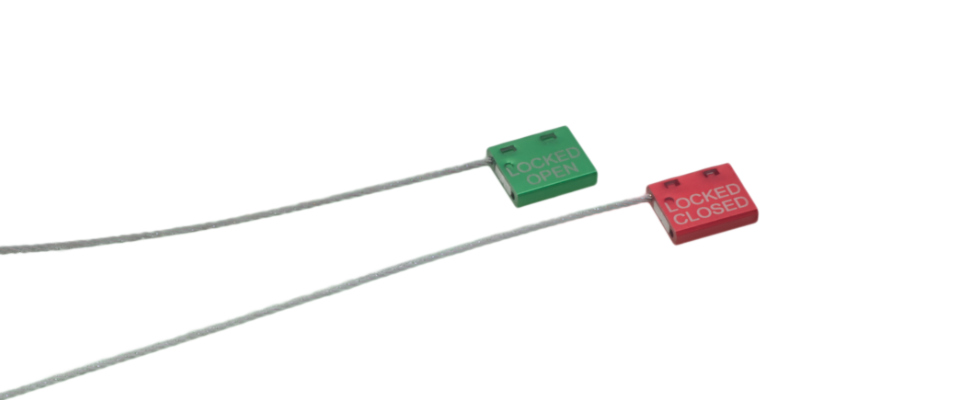

The car seal is a versatile seal used to secure valves in an open or closed position. The tamper evident braided aircraft cable is available in various diameters and lengths to suit a variety of locking holes and breaking strength requirements, and will splay upon cutting to prevent rejoining.

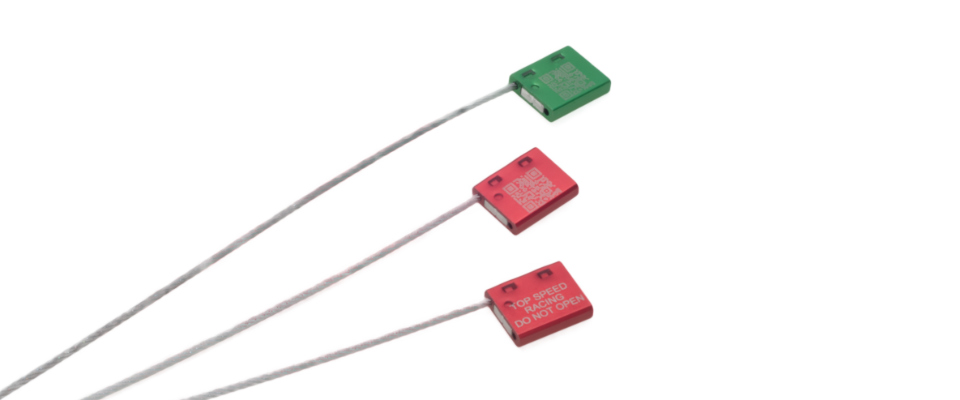

Customised printing option by adding your logo, additional markings or a QR code.

Applications

  • Car seal
  • Shipping containers
  • Trucks
  • Rail freight
  • Utility meters & valves
  • Plastic distribution boxes
  • Valves in petrochemical industry
  • Recycled water taps

Key Features

  • Cables are non-preformed galvanised steel aircraft cable and will splay upon cutting thereby preventing rejoining
  • Body is made from corrosive resistant aluminium alloy
  • Sequential serial numbering and barcoding
  • Removable by bolt cutter
  • Locking mechanism is made of zinc extrusion

Specifications

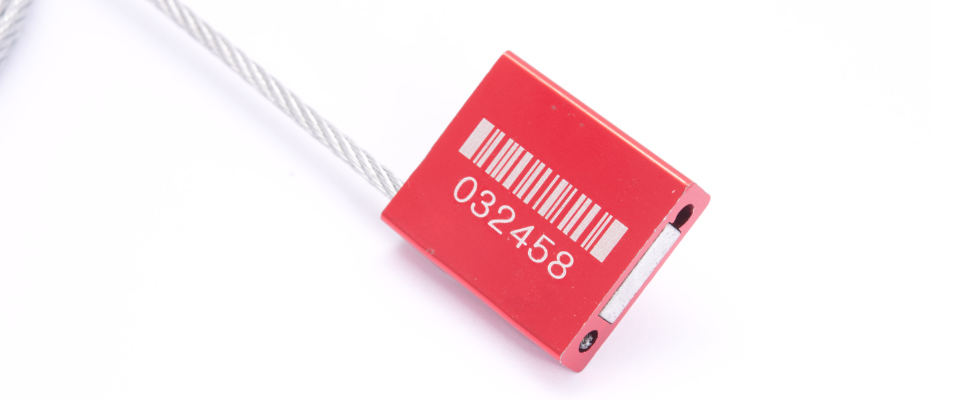

  • Seals are anodized and then laser engraved with barcode and sequential serial numbers for security
  • Standard cable length is 1,000mm, different cable lengths available on special request
  • Breaking strengths vary depending on wire diameter - refer to the table below for specifications.

Customisations

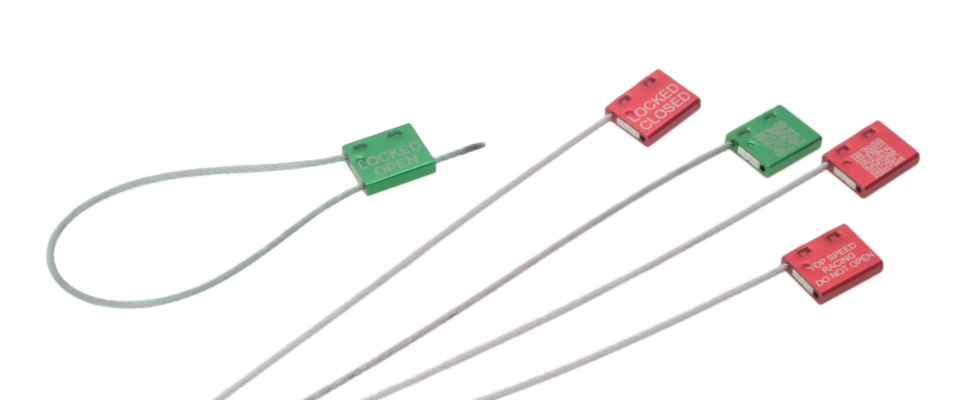

  • Various colour
  • Various cable lengths
  • Various cable type
  • Logo and other markings
  • Serial numbers
  • Barcodes & QR codes

Minimum order quantity required.

Share

bsealed.co/carseal
instagram.com/bsealedau
bsealed.co/youtube

  product code wire length wire diameter breaking strength locking head dimensions shop link
CarSeal 2.5+ 1000 CS25X1000-CAR 1,000mm 2.5mm > 420kgf 25mm x 20.5mm x 6.3mm
CarSeal 2.5+ 2000 CS25X2000-CAR 2,000mm 2.5mm > 420kgf 25mm x 20.5mm x 6.3mm
CarSeal 2.5+ 4000 CS25X4000-CAR 4,000mm 2.5mm > 420kgf 25mm x 20.5mm x 6.3mm
CarSeal 3.5+ 1000 CS35X1000-CAR 1,000mm 3.5mm > 1,000kgf 25mm x 27.6mm x 8mm

Video


Recyclability

Recyclable plastic abs other Recyclable steel
