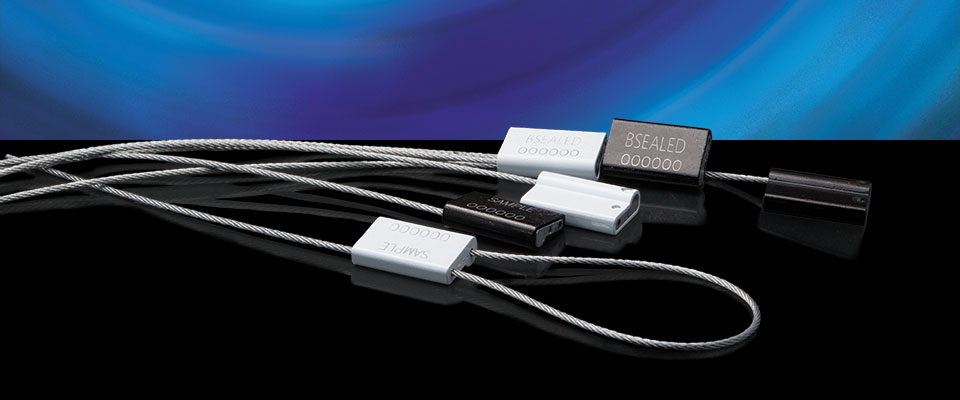

CableSeal Mini

A combination of zinc alloy body and metal locking mechanism results in a versatile cable seal which is resistant of both petroleum and sunlight.

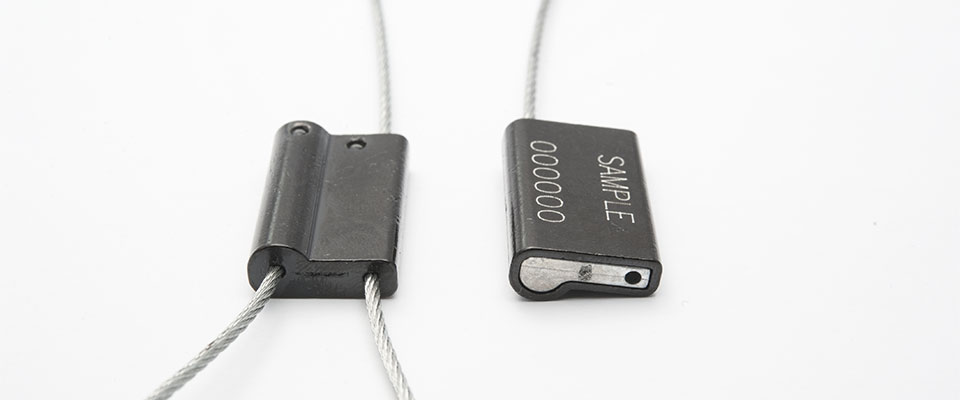

One side presents a flat surface suitable for a wide variety of printing options.

This product is currently end-of-line or discontinued. We recommend CableSeal Micro as an alternative.

Description

The CableSeal Mini combines a zinc alloy body and metal locking mechanism to result in a petroleum and sunlight resistant barrier seal. The compact body allows the seal to be applied to many situations while a laser engravable coating allows for flexible printing options.

Applications

Freight containers
Tanker trucks
Utility meters & valves
Roll cages
Railway freight
Recycled water taps

Key Features

Cables are non-preformed steel and will splay upon cutting thereby preventing rejoining
Easy to pull-through locking mechanism with minimal reversal upon engaging

Specifications

High strength zinc alloy metal body
Suitable for temperatures ranging from -40°C to 100°C
Seals are laser engraved with name and sequential serial numbers for security
Standard cable length is 300mm, different cable lengths available on special request

	product code	wire length	wire diameter	breaking strength	locking head dimensions
CableSeal Mini 1.5	CSM15BS	300mm	1.5mm	270kgf	25.5mm x 16.0mm x 7.0mm
