Immer Seal

Small, easy to use, with a small profile, the Immer Seal is suited to applications where barrier security is required but the seal is to be small and discrete.

Locking housing is made of Zinc, and the cable is made of steel with welded tip for easy locking.

This product is currently end-of-line or discontinued. We recommend CableSeal Mini 2 as an alternative.

Description

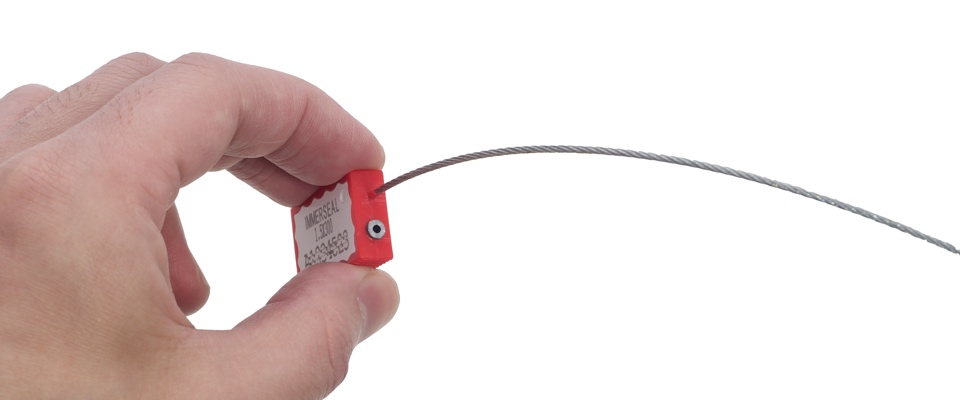

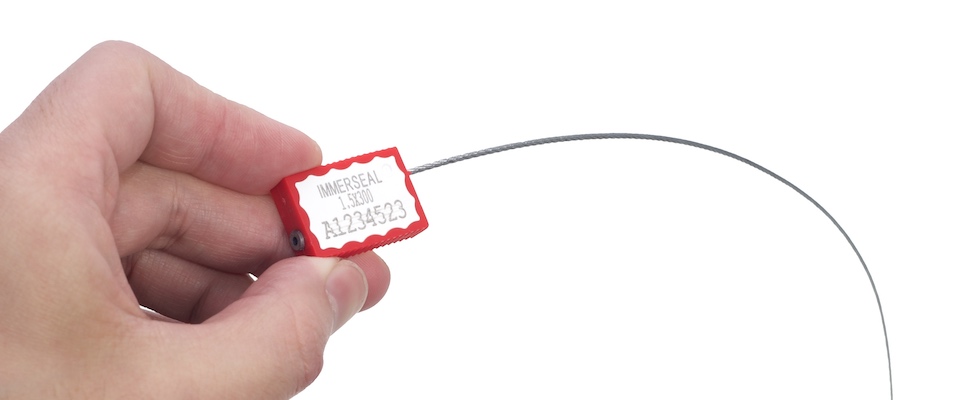

Immer Seal is a hybrid metal and plastic body cable seal that features a discrete size without compromising on high security. The locking housing is manufactured from corrosive resistant zinc with ABS plastic body. The cable is made from steel that will splay when the cable is cut.

Applications

Tanker trucks
Utility meters & valves
Roll cages
Recycled water taps

Key Features

Cables are made from steel and will splay upon cutting thereby preventing rejoining
Easy to pull-through locking mechanism will lock upon insertion and prevent pull-back

Specifications

Average breaking strength over 225kgs
Seals are laser engraved with a variety of custom printing options
Cable length available in 200mm, and 300mm

	wire length	wire diameter	breaking strength	locking head dimensions
Immer Seal 200	200mm	1.5mm	225kgf	30.2mm x 18.6mm x 7.45mm
Immer Seal 300	300mm	1.5mm	225kgf	30.2mm x 18.6mm x 7.45mm
