UnoLock 3

Compare now

Specially designed to meet anti-spin requirements & to be able to stay engaged in container latch even if the plastic coating is knocked off, the UnoLock 3 is incredibly tough and secure.

Specially designed to meet anti-spin requirements & to be able to stay engaged in container latch even if the plastic coating is knocked off, the UnoLock 3 is incredibly tough and secure.

Specially designed to meet anti-spin requirements & to be able to stay engaged in container latch even if the plastic coating is knocked off, the UnoLock 3 is incredibly tough and secure.

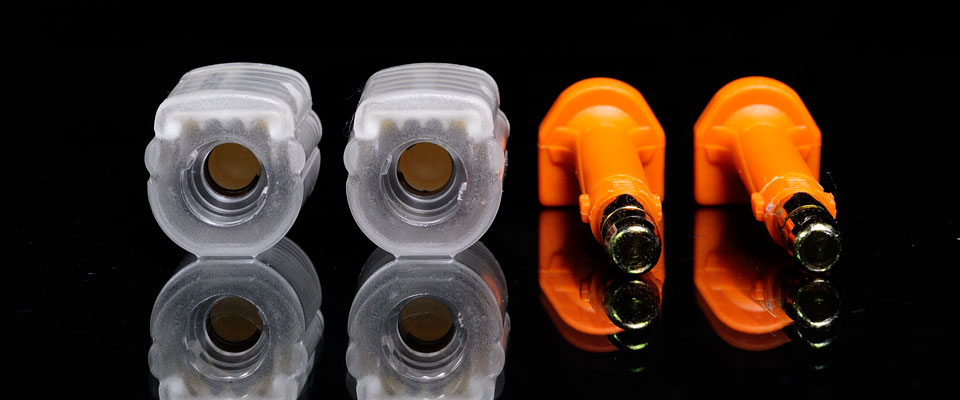

Notches on the pin and barrel limit rotation to 130 degrees either way. This feature defeats high-spin tampering techniques as full rotation is not allowed.

Notches on the pin and barrel limit rotation to 130 degrees either way. This feature defeats high-spin tampering techniques as full rotation is not allowed.

Notches on the pin and barrel limit rotation to 130 degrees either way. This feature defeats high-spin tampering techniques as full rotation is not allowed.

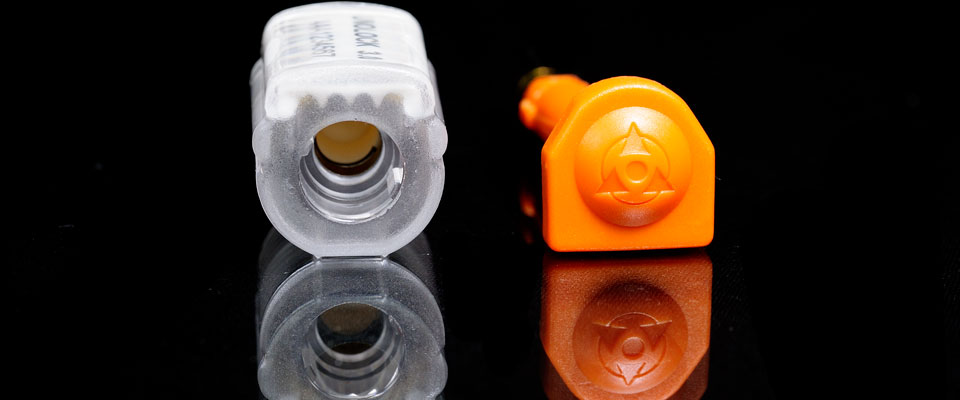

Convenient flat surfaces introduced to the seal prevents either component from rolling, resulting in it being easier to read the markings for logging, as well as lessening the chances the seal will get lost.

Convenient flat surfaces introduced to the seal prevents either component from rolling, resulting in it being easier to read the markings for logging, as well as lessening the chances the seal will get lost.

Convenient flat surfaces introduced to the seal prevents either component from rolling, resulting in it being easier to read the markings for logging, as well as lessening the chances the seal will get lost.

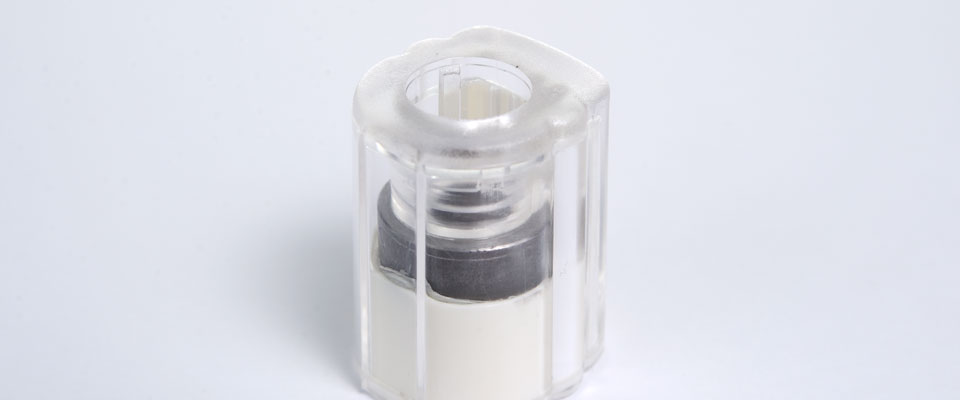

Partially transparent barrel allows user to detect tampering attempts on locking mechanism.

Partially transparent barrel allows user to detect tampering attempts on locking mechanism.

Partially transparent barrel allows user to detect tampering attempts on locking mechanism.

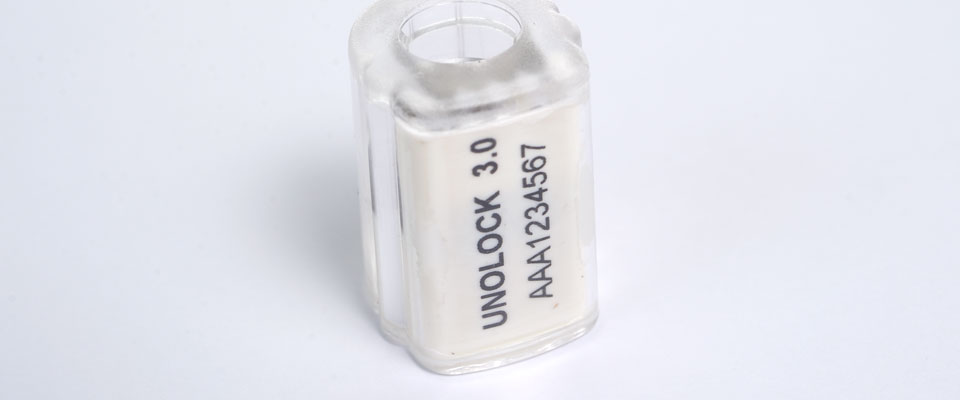

Logos and numbers are encapsulated in a polycarbonate plastic cover to prevent tampering with the printing.

Logos and numbers are encapsulated in a polycarbonate plastic cover to prevent tampering with the printing.

Logos and numbers are encapsulated in a polycarbonate plastic cover to prevent tampering with the printing.

Description

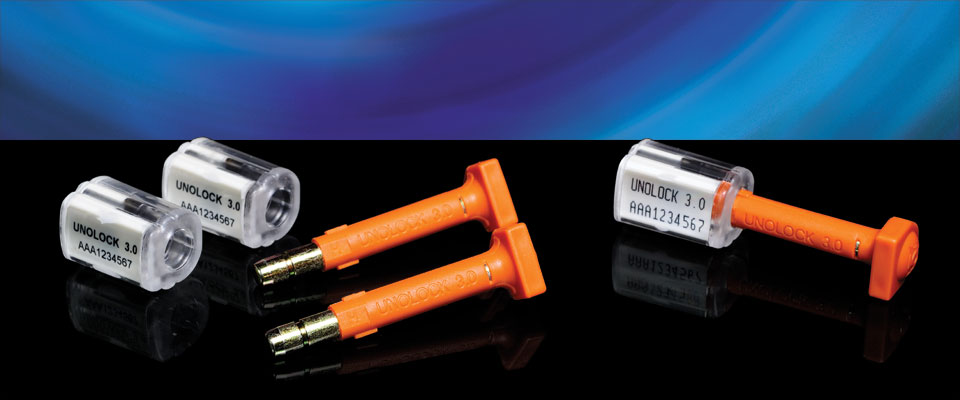

The UnoLock 3.0 is an ISO/DIS 17712 & C-TPAT compliant high security bolt seal, with printing and numbers encapsulated by a polycarbonate plastic cover. The barrel and pin coating is made of durable plastic to reveal evidence of tampering. It also features an 18mm diameter insert and pin head to keep the seal engaged on the container latch even when the plastic covers are removed or knocked off.

Applications

Cargo containers
Trucks
Trailer vehicle doors
Rail freight
Tautliners

Key Features

Seals are ISO/DIS 17712 & C-TPAT compliant
High strength steel with polypropylene coated pin
Barrel covered by hard durable polycarbonate
18mm diameter insert mechanism & pin head is larger than ISO Container latch hole so that the seal will remain in place even if the plastic coating on the seal has been removed or knocked off
Partially transparent barrel to detect tampering attempts on locking mechanism
Limited to 180° rotation when engaged to defeat high-speed rotation tampering techniques

Specifications

Can withstand a pull load larger than 1,000kg-f
Suitable for temperatures ranging from -40°C to 110°C

	product code	barrel diameter	locking distance	locking diameter	pin diameter
UnoLock 3.0 L80	UL808A	25.3mm	44mm	20mm	10mm
UnoLock 3.0 L95	UL958A	25.3mm	59mm	20mm	10mm

Recyclability

Recyclable plastic abs other

Recyclable plastic pp

Recyclable steel

Need help with choosing which type of seal? Chat with us or check out our comparison table: Compare now
