UHF RFID high security bolt seals

Description

A versatile adjustable barrier seal not only offers a high level of security, but the unique RFID chip enables immediate, easy and reliable readings of the integrity of the seal. The unique ID code reinforces product security with regards to authentication of goods along the transport and logistic chain.

The NFC version requires users be near the seal (almost touching) in order to read, however makes it user friendlier with information accessible simply via NFC enabled smartphone or tablet.

The cable seals are available in UHF and NFC RFID, and can be customised on request including logo, serial numbers, barcode or QR Code.

Applications

  • Shipping containers
  • Trucks
  • Rail freight
  • Utility meters & valves
  • Plastic distribution boxes
  • Valves in petrochemical industry
  • Recycled water taps
  • Car seal

Key Features

  • 860-960 MHz UHF frequencies
  • 13.56 MHz NFC
  • ISO/IEC 18000-6 RF Standard

Customisations

  • Various lengths
  • Colour
  • Logo printing
  • Other markings
  • Barcode, QR codes
  • Serial numbers

Minimum order quantity required.

Specifications

  • Operating temperatures –20°C to 55°C
  • Reading max distance between 3m to 8m depending on the reader, 3cm to 10cm (MiniCable)

Share

bsealed.co/rfidcable
instagram.com/bsealedau
bsealed.co/youtube

  wire length wire diameter locking body iso 17712:2013 shop link

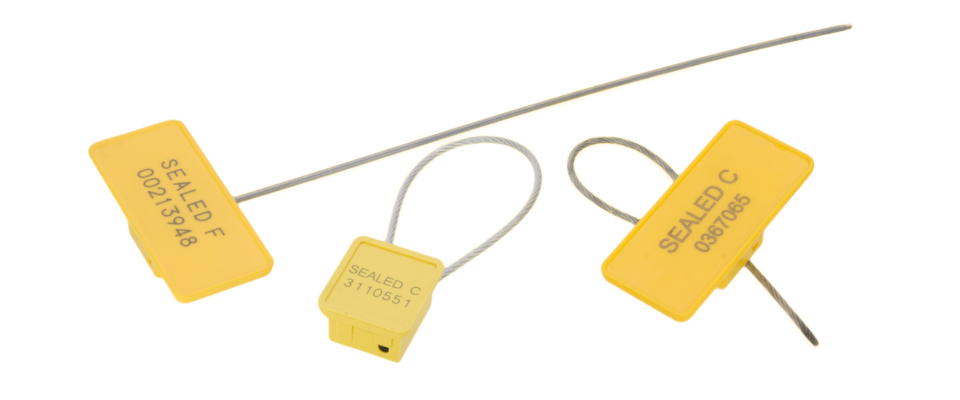

UHF RFID Cable 3.5 330mm 3.5mm 32mm x 36mm x 20mm
42mm x 115mm x 4mm (tag size)
yes ask us

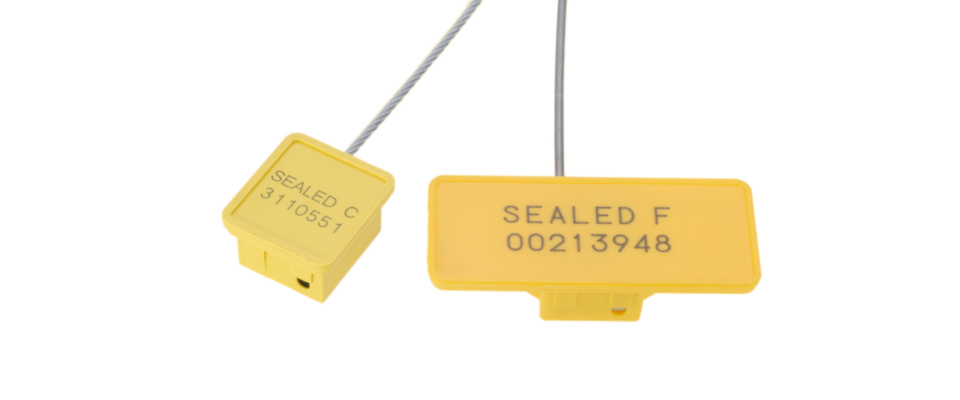

UHF RFID MiniCable 200mm 3.5mm 46mm x 42mm x 25mm no ask us
NFC RFID MiniCable 200mm 3.5mm 42mm x 115mm x 25mm no ask us
